Unlocking the Mystery of RTH Circuits

1. What in the world is an RTH Circuit?

Okay, so you've stumbled upon the term "RTH circuit" and you're thinking, "What's that even mean?" Don't worry, you're not alone. It sounds like something a robot would say after stubbing its toe, but it's actually a handy concept in electrical engineering. RTH, or more accurately, Thevenin Resistance (R_TH) is a key part of Thevenin's Theorem. This theorem is a clever way to simplify complex circuits so we can analyze them more easily. Think of it like this: instead of dealing with a massive, tangled web of components, we can distill it down to a single voltage source and a single resistor. Much cleaner, right?

The Thevenin resistance, R_TH, is the equivalent resistance "seen" from two terminals in a circuit, after all the independent voltage sources have been short-circuited and all the independent current sources have open-circuited. Sounds complicated, but the point is to pretend all the power sources arent providing power, and then calculate the resistance if you were to measure it from those two terminals. This simplified resistance is crucial when you want to figure out things like the maximum power transfer to a load or how a circuit will behave when you connect different components to it.

Imagine trying to figure out how much power a specific light bulb will draw when you plug it into a complicated wall outlet circuit. Instead of analyzing the entire house's wiring, Thevenin's theorem allows us to reduce that wall outlet circuit to a simple voltage source (Thevenin voltage) and a single resistance (Thevenin resistance). Then, it becomes much easier to calculate the current and power for that light bulb. It's like having a superpower for circuit analysis!

So, in essence, RTH isn't just a fancy term; it's a practical tool. It streamlines complex circuit analysis, enabling us to understand and predict circuit behavior with greater ease. By finding the Thevenin Resistance, we gain a clearer picture of how a circuit interacts with external components, allowing for better design and troubleshooting.

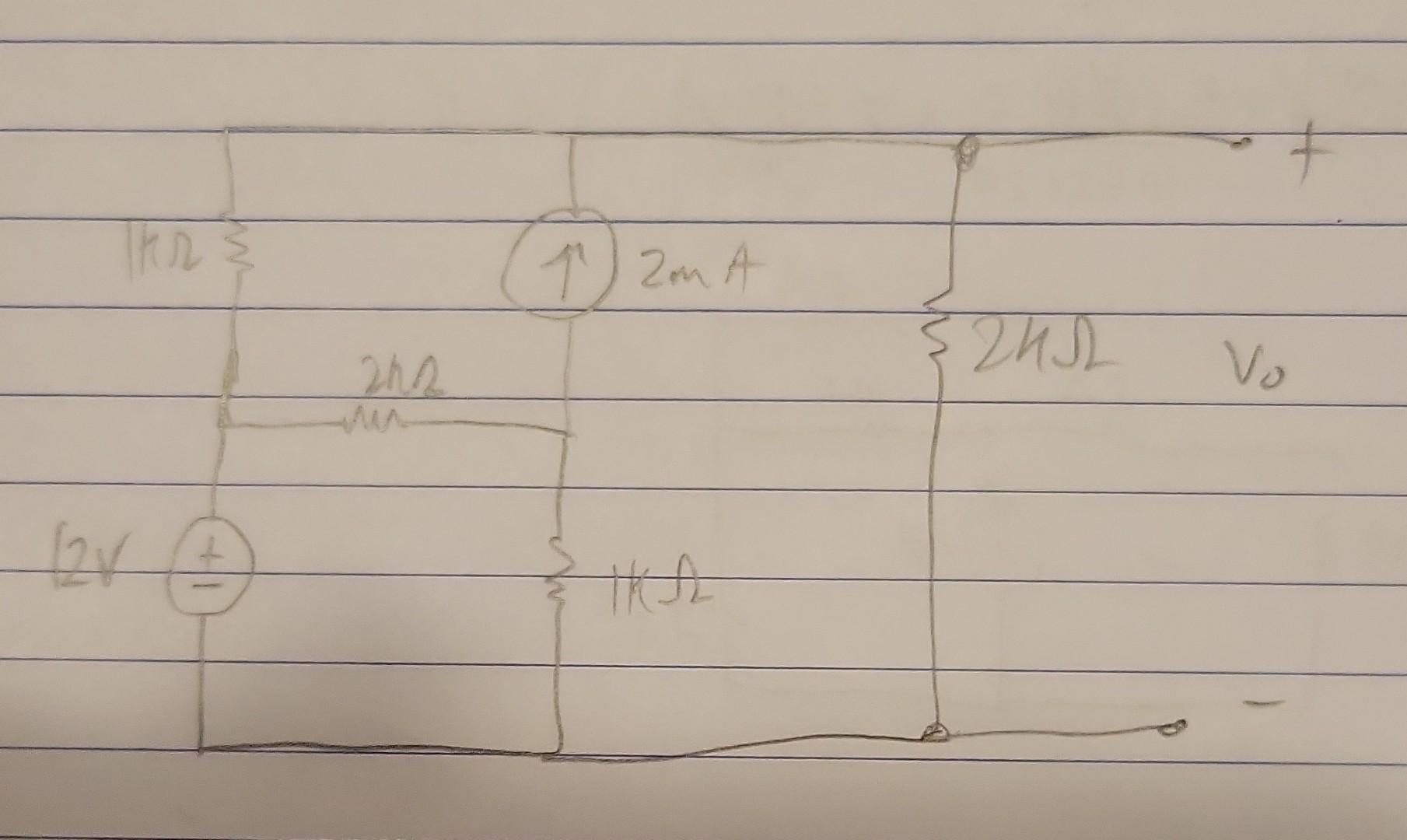

How Do You Get The Rth For This Circuit, STEP BY

Why Bother Finding RTH? The Practical Perks

2. The Power of Simplification

Alright, so we know what RTH is, but why should you even care? Well, consider this: have you ever tried untangling a massive ball of Christmas lights? It's frustrating, time-consuming, and makes you question your life choices. Analyzing a complex circuit without Thevenin's theorem can feel pretty similar. RTH is like the magic trick that turns that tangled mess into a neatly organized string.

One of the main reasons to find the RTH is to simplify complex circuit analysis. Instead of dealing with numerous resistors, voltage sources, and current sources all interacting at once, you can represent the entire circuit with a single resistor (R_TH) and a single voltage source (V_TH). This significantly reduces the complexity of calculations and makes it easier to understand how the circuit behaves.

Let's say you're designing a filter circuit for an audio amplifier. You have several components working together, and you want to understand how the filter's output will respond to different audio frequencies. By finding the Thevenin equivalent circuit at the output of the filter, you can easily analyze its behavior and fine-tune the component values to achieve the desired frequency response. It's all about making life easier (and less prone to exploding capacitors... hopefully!).

The benefits extend beyond just easier math. A simplified circuit representation allows engineers and hobbyists alike to quickly grasp the fundamental characteristics of the circuit and make informed decisions about design modifications or troubleshooting. RTH empowers us to see the forest for the trees, leading to more efficient and effective circuit design.

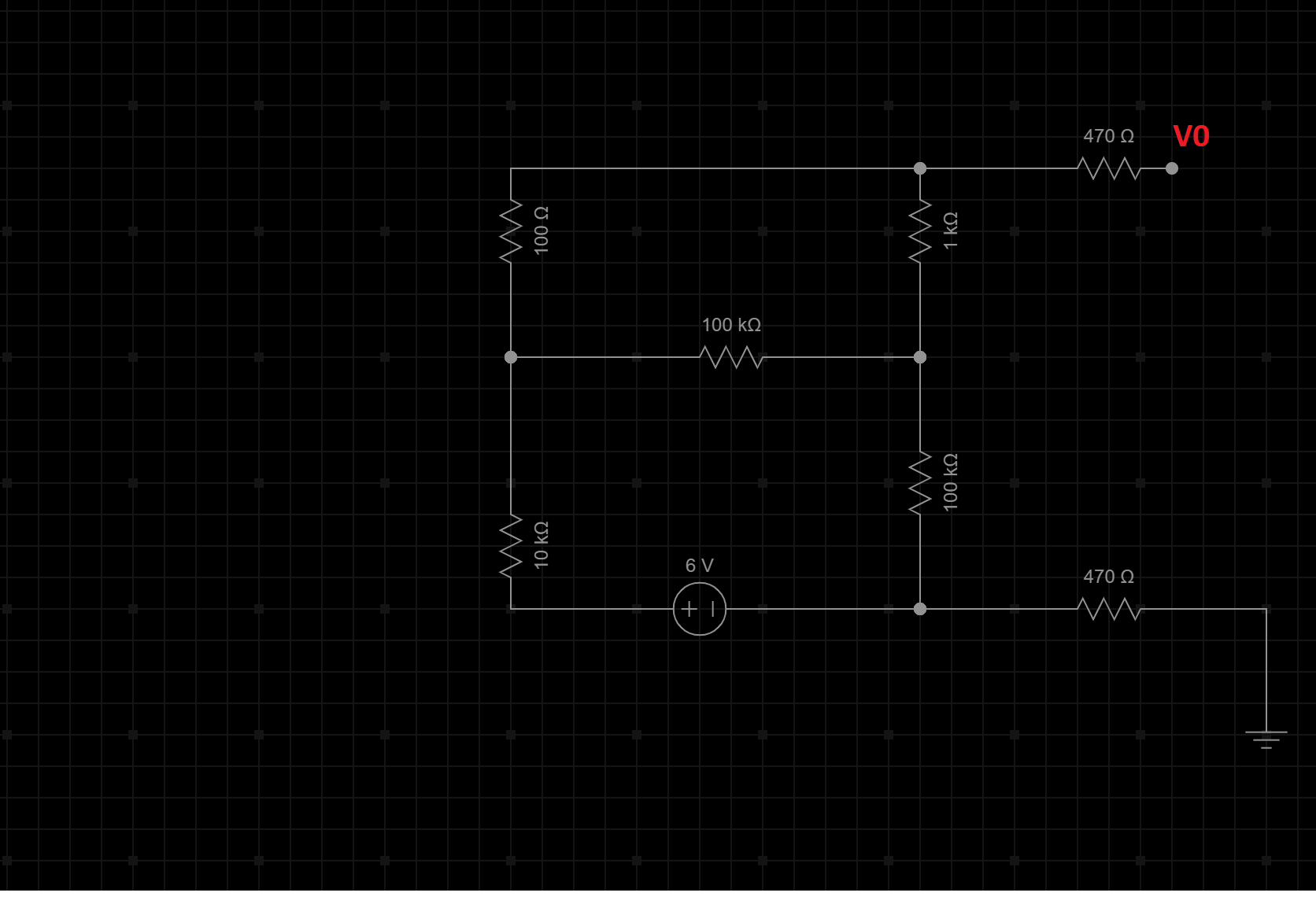

Solved What Is Rth Of The Following Circuit?

Calculating RTH

3. Demystifying the Calculation Process

Okay, so now the big question: How do we actually calculate this magical RTH value? Fear not! It's not as daunting as it might seem. The process usually involves a few key steps, and with a little practice, you'll be finding RTH values in your sleep (well, maybe not that often).

The core idea is to deactivate all independent sources in the circuit. What does that mean? It's quite simple: replace all independent voltage sources with short circuits and all independent current sources with open circuits. This effectively eliminates the contribution of these sources to the resistance seen at the terminals of interest. This is the key step in isolating the passive resistance of the circuit.

After deactivating the sources, you're left with a network of resistors. The next step is to calculate the equivalent resistance of this network as seen from the terminals where you want to find the Thevenin equivalent. This often involves combining resistors in series and parallel using the standard formulas you may remember (or hopefully remember!) from basic circuit theory: R_series = R1 + R2 + ... and 1/R_parallel = 1/R1 + 1/R2 + .... These are your tools to simplify the remaining resistor network.

Let's illustrate with a simple example. Imagine a circuit with two resistors, R1 and R2, connected in series, and a voltage source connected to the series combination. To find the RTH at the terminals of the series resistors, you would short-circuit the voltage source. The equivalent resistance would then simply be R1 + R2. For a parallel circuit, you'd use the parallel resistance formula. By carefully applying these techniques, you can systematically reduce complex resistor networks to a single equivalent resistance, which is your RTH!

[Solved] Also Find RTH. Compute The Values Of VTH And RTH In

Common Mistakes and How to Dodge Them

4. Avoiding the Pitfalls

Even with a clear process, it's easy to make a few common mistakes when calculating RTH. Spotting these errors early can save you a lot of time and frustration. So, let's shed light on some of the most common pitfalls and how to avoid them.

One frequent mistake is forgetting to deactivate all independent sources. It's crucial to short-circuit all voltage sources and open-circuit all current sources before calculating the equivalent resistance. Missing just one source can significantly skew your results and lead to an incorrect RTH value. Double-check your circuit diagram to ensure every source is properly accounted for.

Another common error is misapplying the series and parallel resistance formulas. It's essential to correctly identify which resistors are in series and which are in parallel. Visualizing the current path can be helpful in determining the correct configuration. Remember, resistors in series have the same current flowing through them, while resistors in parallel have the same voltage across them.

Furthermore, pay close attention to the terminals where you're calculating the RTH. The equivalent resistance is always calculated "looking" into the circuit from those specific terminals. If you're not careful, it's easy to calculate the resistance from a different perspective, resulting in an incorrect value. Ensure you have a clear understanding of the circuit's terminals before proceeding with the calculations.

Finally, don't forget to double-check your calculations! A simple arithmetic error can easily throw off your result. Taking a few extra minutes to review your work can save you from hours of troubleshooting and head-scratching. By being mindful of these common mistakes, you can significantly improve your accuracy and confidence in calculating RTH.

How To Find Rth (Thevenin Equivalent R) Of This Circuit Electrical

RTH in Action

5. From Theory to Practical Application

So, where does RTH actually show up in the real world? It's not just a theoretical concept confined to textbooks and exams. RTH plays a critical role in various applications, from power systems to electronics. Let's explore a few real-world examples to see RTH in action.

One common application is in maximum power transfer analysis. In many scenarios, you want to deliver the maximum possible power from a source to a load. The maximum power transfer theorem states that maximum power is transferred when the load resistance is equal to the Thevenin resistance (R_TH) of the source. This principle is used in designing audio amplifiers, radio transmitters, and other power delivery systems to optimize efficiency and performance.

Another application is in circuit modeling and simulation. When simulating complex circuits, it's often beneficial to simplify certain parts of the circuit using Thevenin's theorem. This can significantly reduce the computational burden and allow for faster and more efficient simulations. For example, when simulating a power supply circuit, you might represent the AC power source and transformer as a Thevenin equivalent circuit, simplifying the overall simulation.

Furthermore, RTH is used in troubleshooting and fault analysis. When diagnosing problems in a circuit, it can be helpful to measure or calculate the Thevenin resistance at various points in the circuit. This can help identify faulty components or wiring issues. For example, if you measure a significantly different Thevenin resistance than expected, it could indicate a short circuit or open circuit in that part of the circuit.

Think about tuning a radio. The antenna circuit is designed to match the impedance of the receiver, which involves considering the Thevenin resistance. By ensuring that the antenna's impedance is matched to the receiver's, the maximum signal strength is achieved, resulting in better reception. From power systems to electronics, RTH is an essential tool for engineers and technicians, helping them understand, analyze, and optimize circuit behavior.
